TAP

Vrouwelijke metalen inslagplug

De metalen inslagplug TAP met kraag Optie 7 en binnendraad M6 of M8 is geschikt voor het bevestigen van structurele elementen op ongescheurd beton en voor het bevestigen van diverse niet-structurele uitrustingselementen op gescheurd of ongescheurd beton.

Er kan een metrische schroef of draadstang worden ingebracht.

Technisch gegevensblad

CE-Markering

ETA

Gebruiksklasse 2

Elektrolytisch verzinkt staal

Brand R120

Fix Calc

Product Details

Afbeeldingen

Kenmerken

Materiaal

Elektrolytisch verzinkt staal.

Voordelen

Veilige en gecontroleerde uitzetting,
Snelle installatie,
Gereduceerde verankeringsdiepte: kortere boortijd,
kraag voor eenvoudige installatie gelijk met het oppervlak van de ondergrond,
Hoge prestaties in verhouding tot de verankeringsdiepte,
Brandwerendheid R120.

Toepassing

Toepassingsgebieden

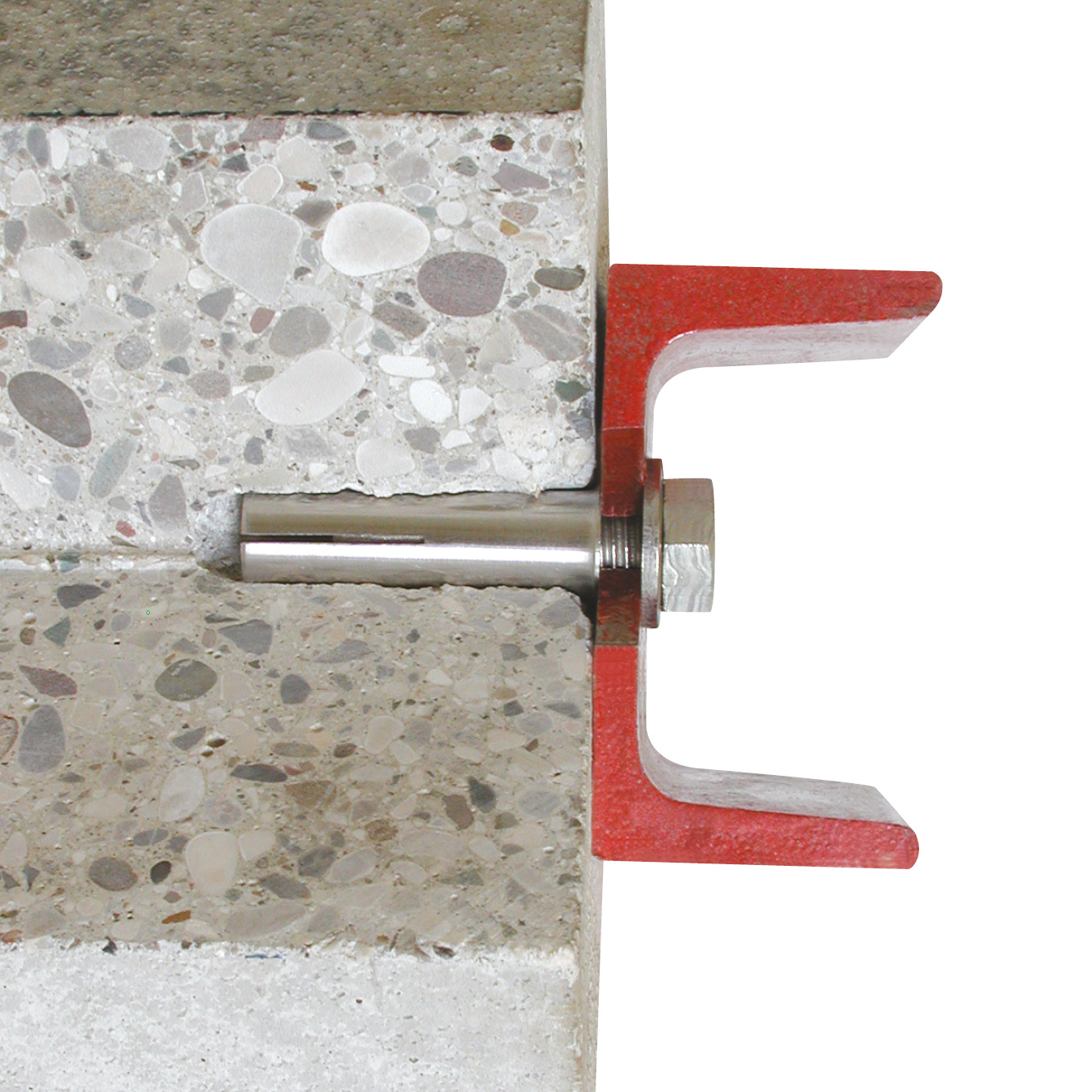

Ideaal voor alle soorten hangende uitrustingen:

goten, rails,
kabelhulzen en leidingen,
Sprinkler-bevestiging.

Ondergrond

gescheurd en ongescheurd beton voor niet-structurele toepassingen,
ongescheurd beton voor structurele toepassingen,
steen.

Technische gegevens

Afmetingen

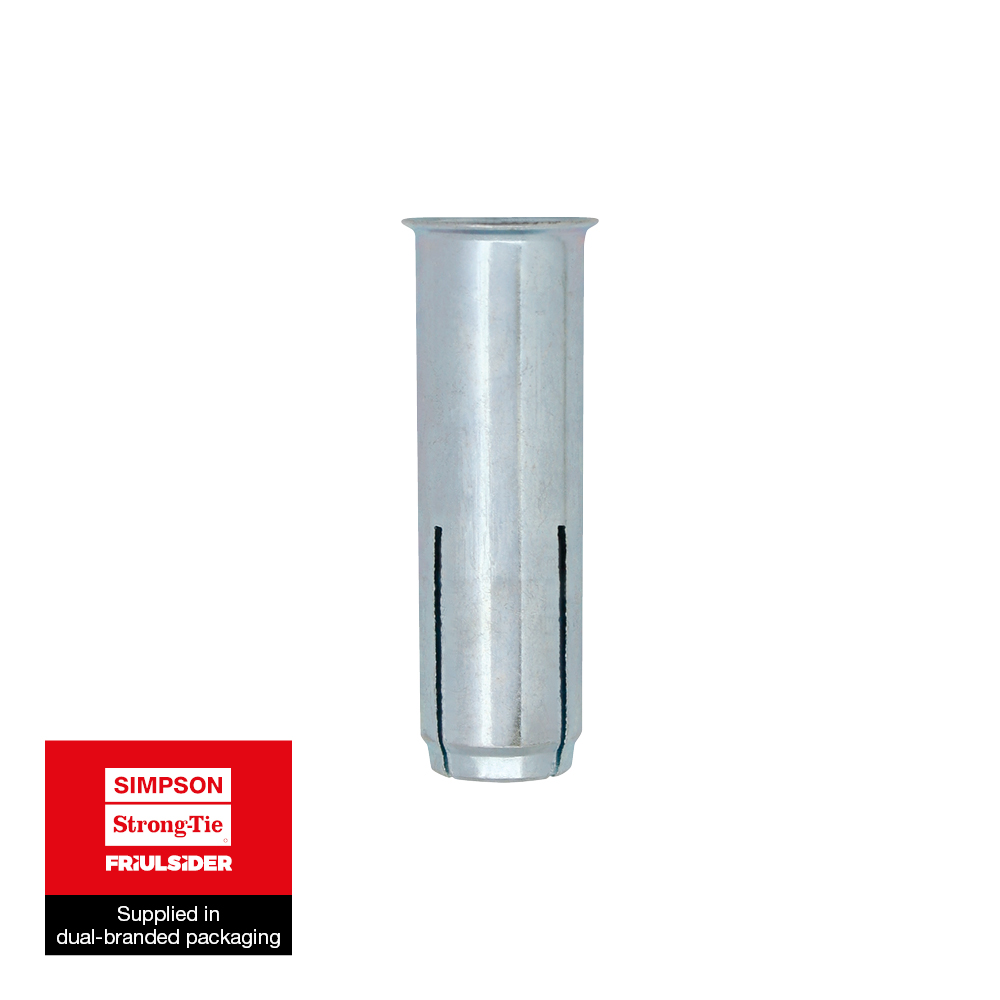

Product Dimension - Rimmed hammerset anchor

Referentie	Product Reference	Plug [Ø x L]	Dimensions [dxL] [mm]	Hole diameter [d_o] [mm]	Cylindrical hole depth [h₀] [mm]	Nominal embedment depth [h_nom] [mm]	Threaded length [L_th] [mm]	Max. thread engagement [L_s,min] [mm]	Torque [T_inst] [Nm]	Qty per box	Qty per outer box
75205B0600000	TAP	8x25*	M6x25	8	25	25	11	6	4	100	2000
75205B0800000	TAP	10x30	M8x30	10	30	30	13	8	8	100	1000

* Only ETA 18/0433 ETAG 001 p.6 Multiple use
** Only ETA 18/0432 EAD-330232-00-0601 opt.7

Screw Length: Minimum: L_s,min + t_fix - Maximum: L_th + t_fix

Design capacities - single anchor - no edge distances - ETA-18/0432

Referentie	Recommented loads - Non-cracked concrete (3)
	Dimensions [dxL] [mm]	Tension - N_rec⁽¹⁾				Shear - V_rec^(1-2)				Bending moment M_rec [Nm]
	Dimensions [dxL] [mm]	C20/25 [kN]	C30/37 [kN]	C40/50 [kN]	C50/60 [kN]	C20/25 [kN]	C30/37 [kN]	C40/50 [kN]	C50/60 [kN]	Bending moment M_rec [Nm]
75205B0600000	M6x25	-	-	-	-	-	-	-	-	-
75205B0800000	M8x30	3.3	4	4.7	5.1	4	4.9	5.6	6.2	8.98
49902B060000C	-	-	-	-	-	-	-	-	-	-
49902B080000C	-	-	-	-	-	-	-	-	-	-

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

*Not covered by ETA-18/0432

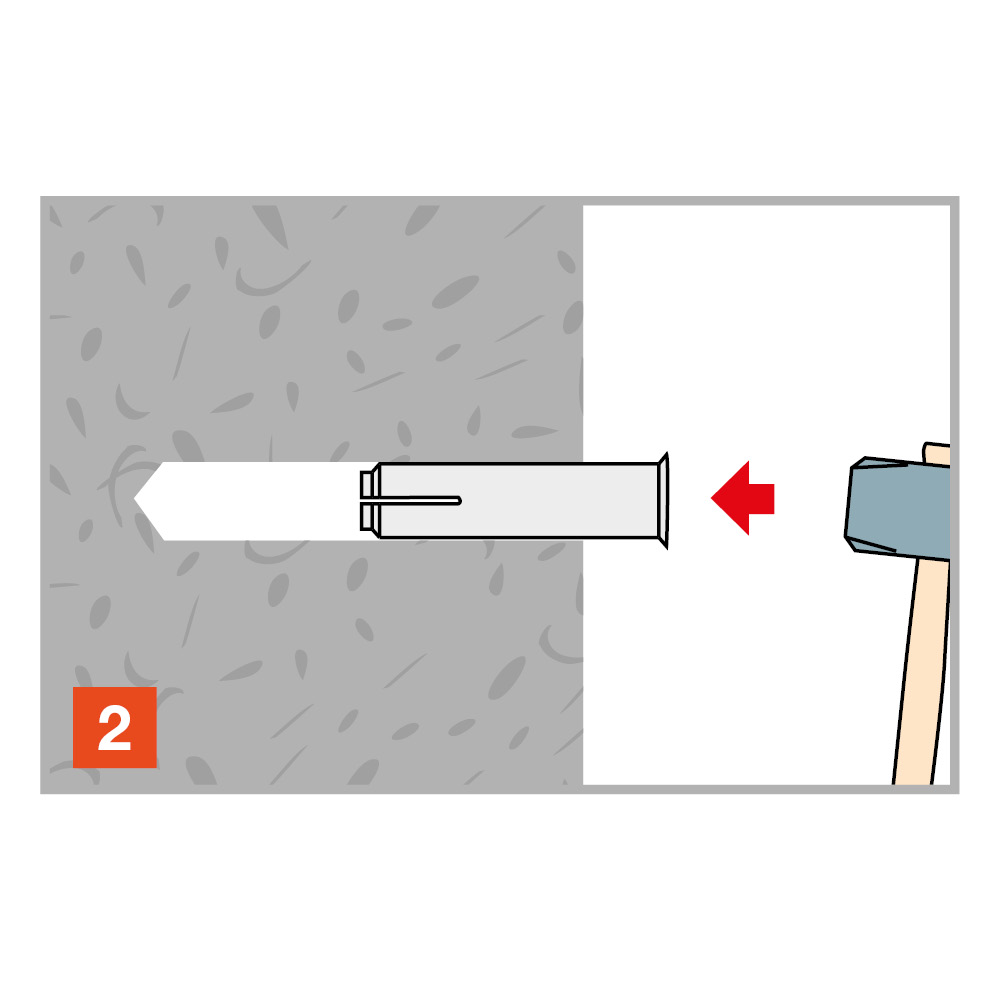

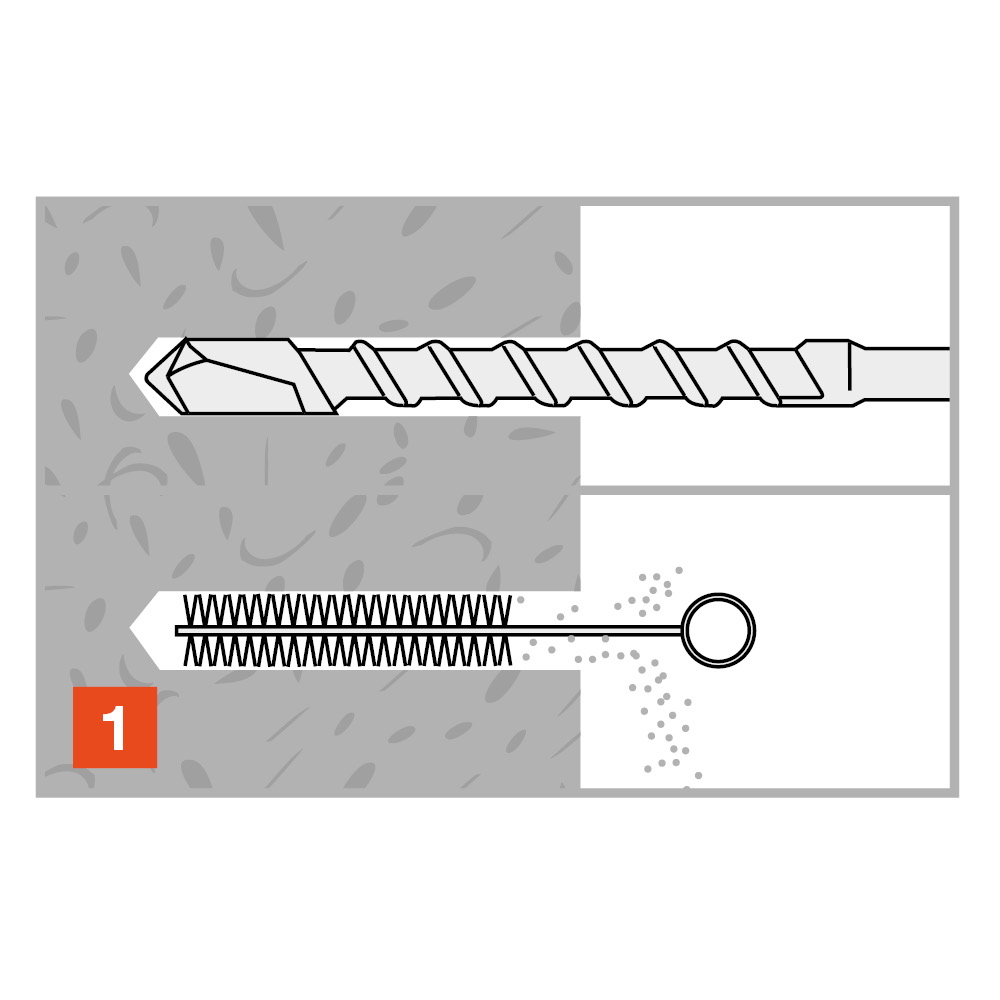

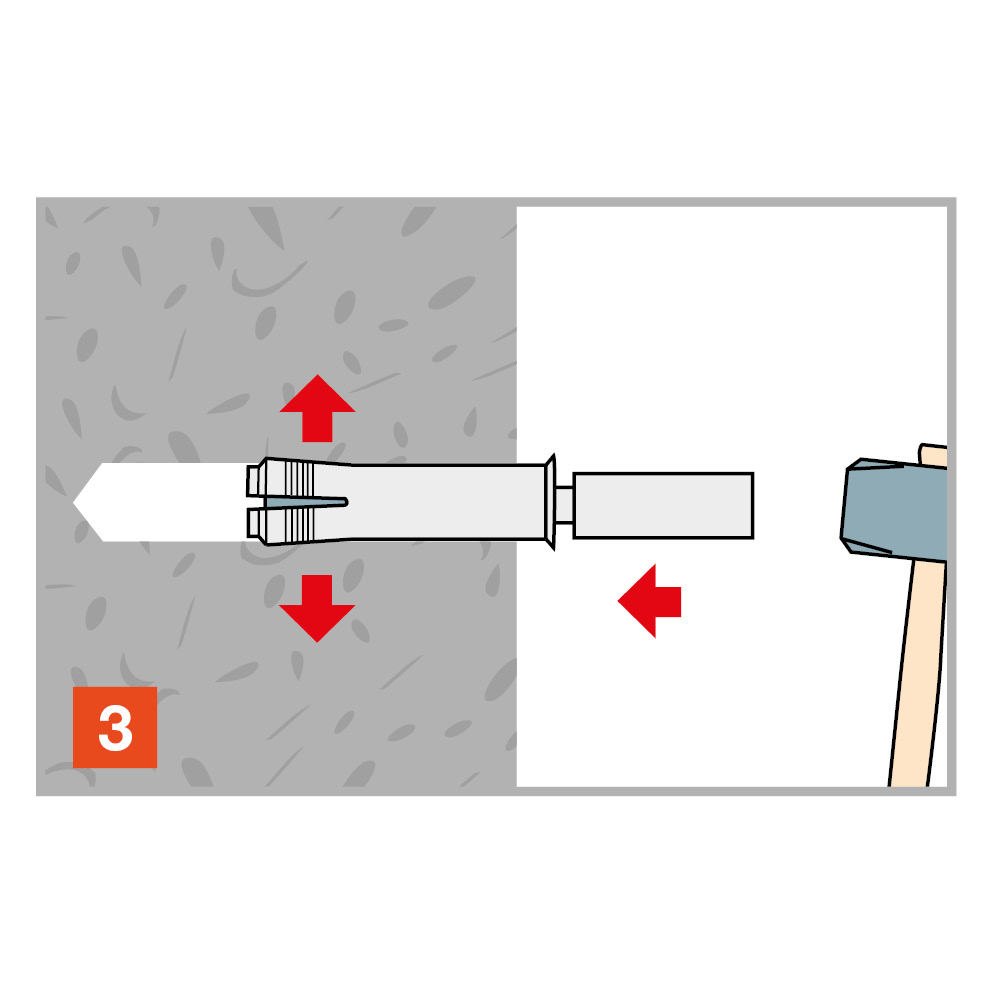

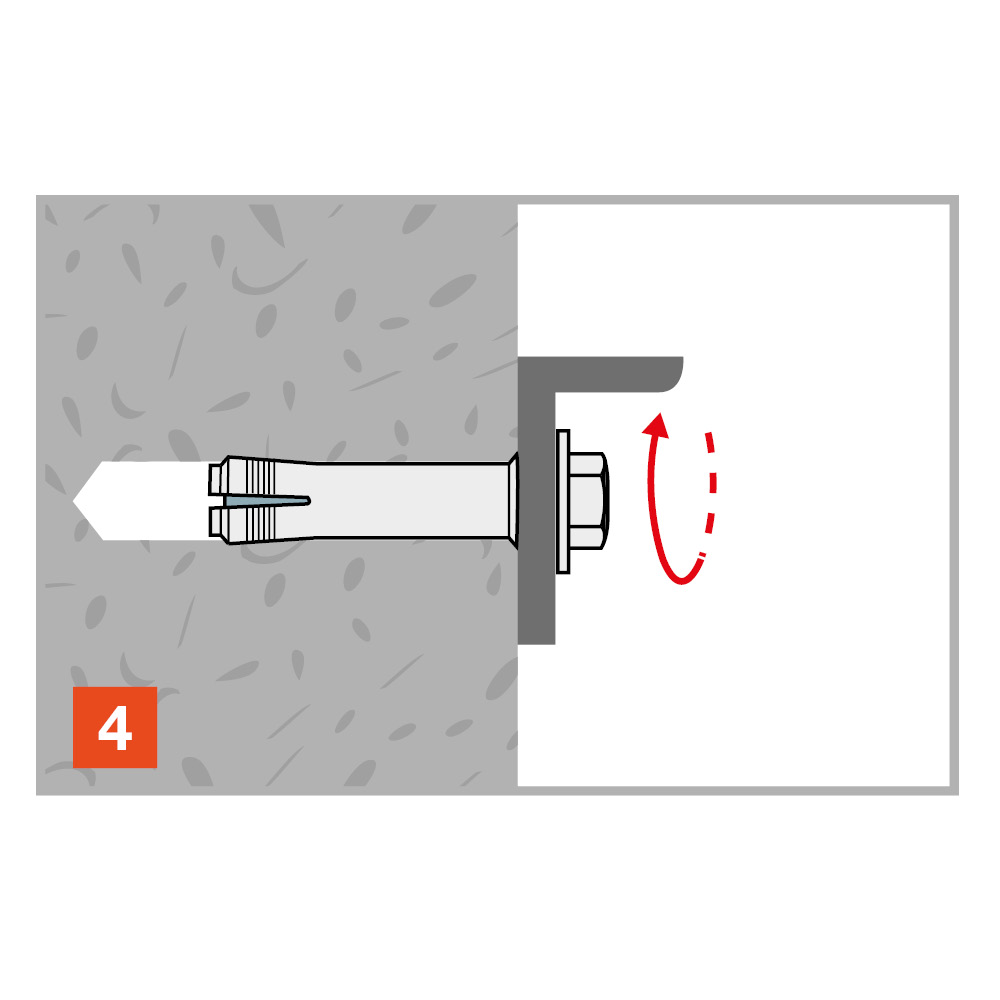

Installatie

Installation data

Referentie	Product Reference	Dimensions [dxL] [mm]	Ø drilling hole [d0] [mm]	Min. drill depth [h1] [mm]	Ø drilling fixture [df] [mm]	Wrench size [SW] [mm]	Installation torque [Tinst] [Nm]	Embedment depth [hef] [mm]	Min. support thickness [hmin] [mm]
75205B0600000	TAP	M6x25	8	25	7	-	4	25	-
75205B0800000	TAP	M8x30	10	30	9	-	8	30	100
49902B060000C	TAP Setting Tool	-	-	-	-	-	-	-	-
49902B080000C	TAP Setting Tool	-	-	-	-	-	-	-	-

Spacing and edge distances - ETA-18/0432

Referentie	Product Reference	Dimensions [dxL] [mm]	Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]	Characteristic edge distance [ccr,N] [mm]	Characteristic spacing(5) - Scr,N [scr,N] [mm]
75205B0600000	TAP	M6x25	-	-	-	-
75205B0800000	TAP	M8x30	41	41	45	90
49902B060000C	TAP Setting Tool	-	-	-	-	-
49902B080000C	TAP Setting Tool	-	-	-	-	-

* Not included in the approval
