CSA-T
Schroeven voor hoekankers op hout

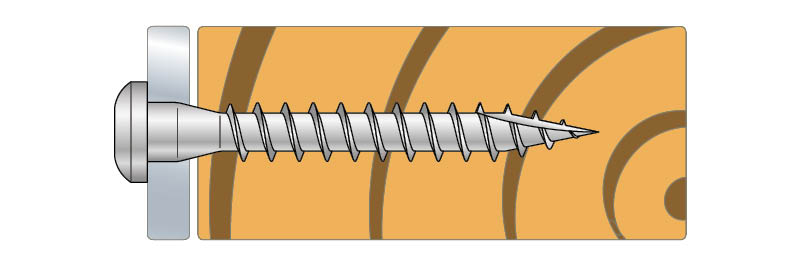

Bandschroeven CSA vereenvoudigen de plaatsing van hoekijzers en verbinders op houten ondergrond. De kegelvormige kop garandeert een nauwsluitende passing met de verbinder voor een betere krachtsoverdracht.
CE-Markering
ETA
Gebruiksklasse 2
Elektrolytisch verzinkt staal
Binner
Product Details
Afbeeldingen
Kenmerken
Toepassing
Technische gegevens
Afmetingen
Product dimensions and capacities
| Referentie | Tun / DB nr. | NOBB nr. | Afmetingen bevestigingen [mm] | m²/doos [r/min] | Karakteristieke waarden - Hout C24 overeenkomstig ETE-04/0013 [kN] | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | Bit | Rlat.k [kN] | Rax.k | ||||
| CSA5.0X35T | 1439922 | 43840576 | 4.85 | 35 | 8.3 | 3.15 | 29 | T-20 | 2500 | 2 | 2.11 |
| CSA5.0X50T | 1440026 | 43840606 | 4.85 | 50 | 8.3 | 3.15 | 44 | T-20 | 2500 | 2.6 | 3.2 |
Capacities are given for 2 mm steel plate thickness and C24 timber. To determine the capacities for other steel thickness and / or timber grades, please refer to ETA-04/0013.
Product Dimensions UK
| Referentie | Fastener Dimensions [mm] | Qty per Strip | Qty per Box | Recommended RPM | Quik Drive Attachment | |||
|---|---|---|---|---|---|---|---|---|
| dh | d | l | lg | |||||
| CSA5.0X35T | 8.3 | 4.85 | 35 | 29 | 25 | 1500 | 2500 | QDBPC50E |
| CSA5.0X50T | 8.3 | 4.85 | 50 | 44 | 25 | 1000 | 2500 | QDBPC50E |
Performance Values UK
| Referentie | Karakteristieke waarden - Hout C24 overeenkomstig ETE-04/0013 [kN] | |
|---|---|---|
| Rlat.k [kN] | Rax.k | |
| CSA5.0X35T | 2 | 2.11 |
| CSA5.0X50T | 2.6 | 3.2 |
Capacities are given for 2mm steel plate thickness and C24 timber. To determine the capacities for other steel thickness and/or timber grades, please refer to ETA-04/0013
