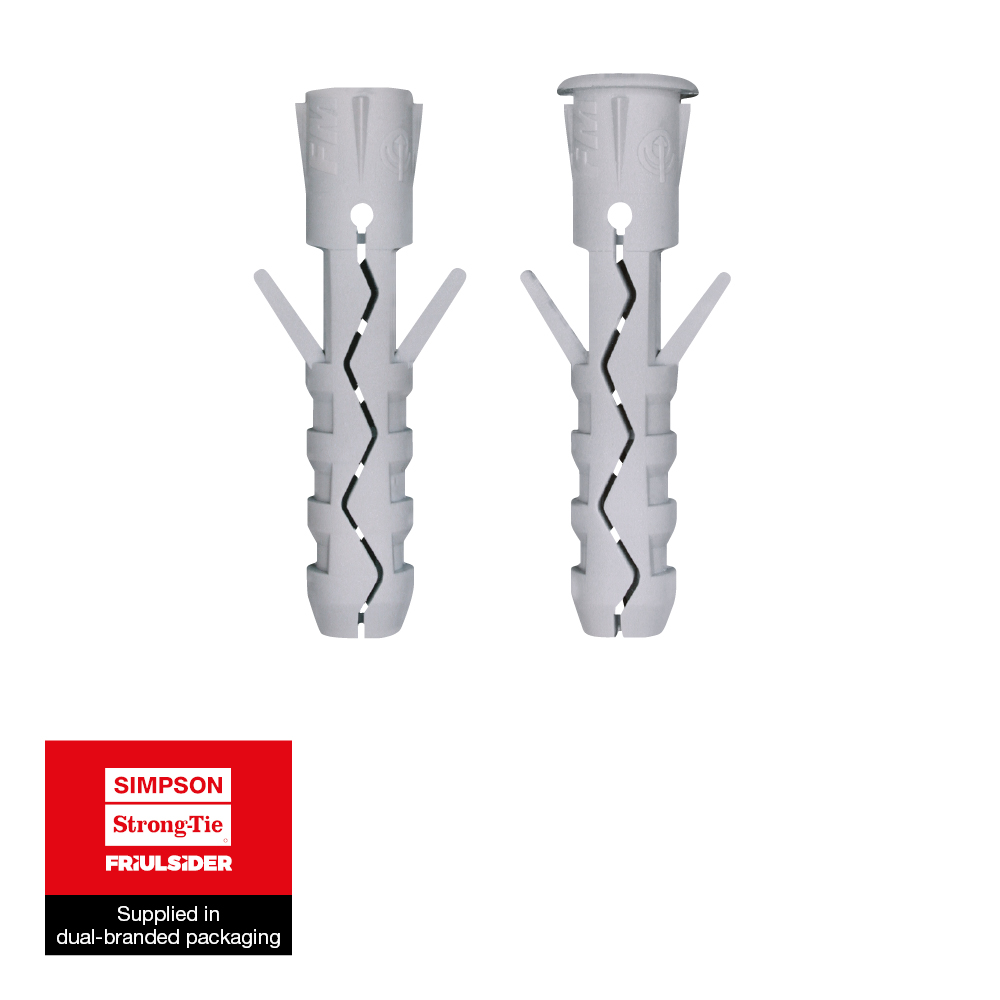

TU Plug
Plug van nylon/polypropyleen
De expansieplug TU Plug van nylon/polypropyleen is geschikt voor het bevestigen van lichte elementen op holle of volle ondergronden.
Product Details
Afbeeldingen
Kenmerken

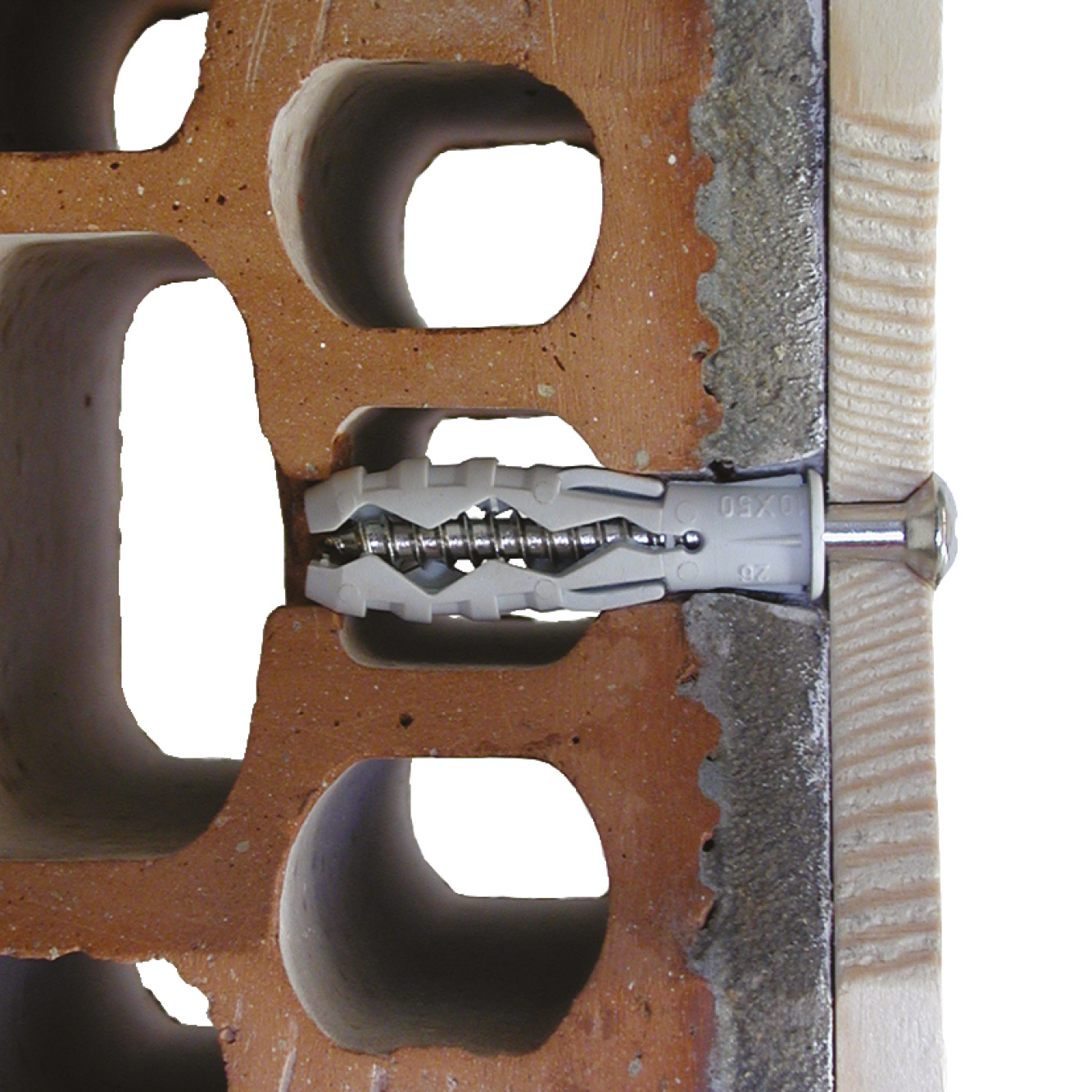

Toepassing
Technische gegevens
Afmetingen
Product Dimension - Nylon plug - Rimmed Plug
| Referentie | Product Reference | Hole diameter x anchor length [doxL] [mm] | Min. hole depth [h1] [mm] | Nominal embedment depth [hnom] [mm] | Min. support thickness [hmin] [mm] | Min. screw diameter [d] [mm] | Max. screw diameter [d] [mm] | Qty per box | Qty per outer box |
|---|---|---|---|---|---|---|---|---|---|
| 6000100603000 | TU | Ø6x30 | 40 | 30 | 60 | 3.5 | 5 | 100 | 3200 |
| 6000100703500 | Ø7x35* | 45 | 35 | 80 | 4 | 5.5 | 150 | 2400 | |
| 6000100804000 | Ø8x40 | 55 | 40 | 80 | 4.5 | 6 | 100 | 1600 | |
| 6000101005000 | Ø10x50 | 65 | 50 | 100 | 6 | 8 | 50 | 800 | |
| 6000101206000 | Ø12x60* | 75 | 60 | 120 | 8 | 10 | 25 | 400 |
* Previous version geometry
Afmetingen
| Referentie | Product Reference | Hole diameter x anchor length [doxL] [mm] | Min. hole depth [h1] [mm] | Nominal embedment depth [hnom] [mm] | Min. support thickness [hmin] [mm] | Min. screw diameter [d] [mm] | Max. screw diameter [d] [mm] | Qty per box | Qty per outer box |
|---|---|---|---|---|---|---|---|---|---|
| 6010100603000 | TU | Ø6x30 | 40 | 30 | 60 | 3.5 | 5 | 100 | 3200 |
| 6010100703500 | Ø7x35* | 45 | 35 | 80 | 4 | 5.5 | 150 | 2400 | |
| 6010100804000 | Ø8x40 | 55 | 40 | 80 | 4.5 | 6 | 100 | 1600 | |
| 6010101005000 | Ø10x50 | 65 | 50 | 100 | 6 | 8 | 50 | 800 | |
| 6010101206000 | Ø12x60* | 75 | 60 | 120 | 8 | 10 | 25 | 400 |
* Previous version geometry

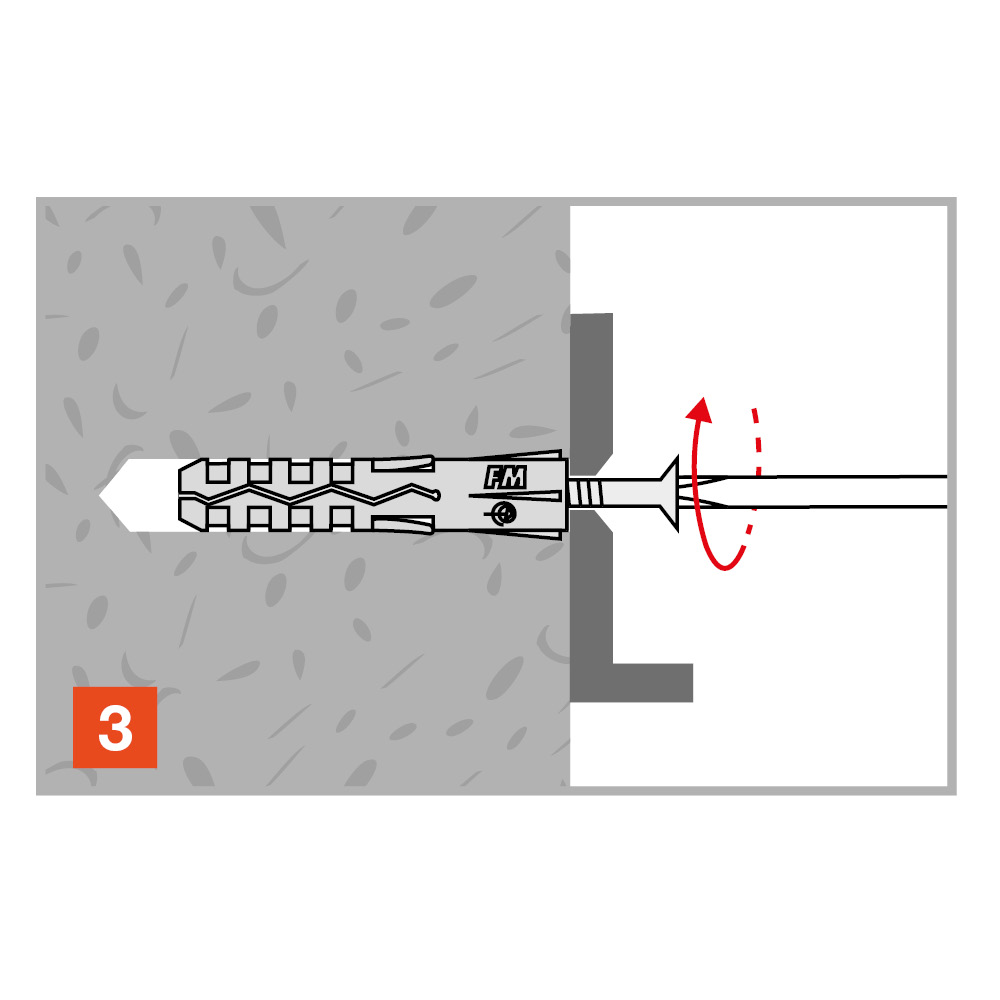

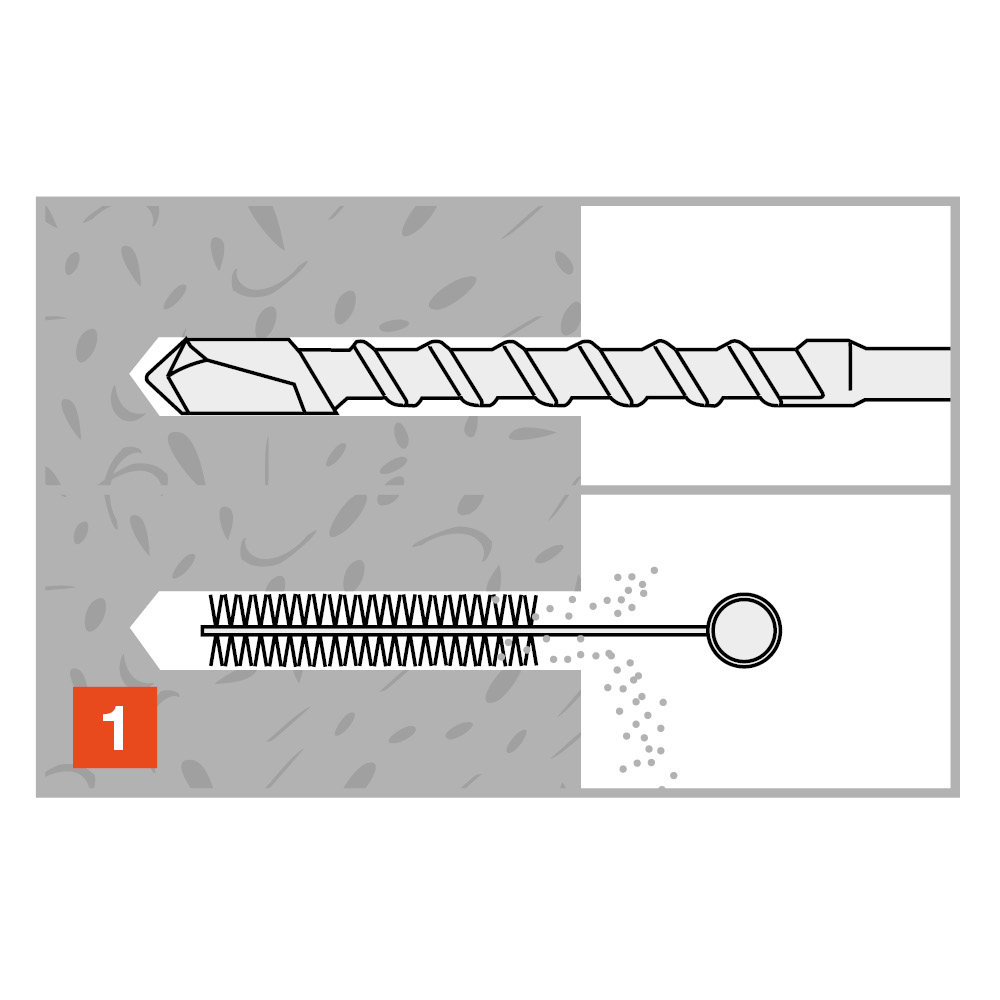

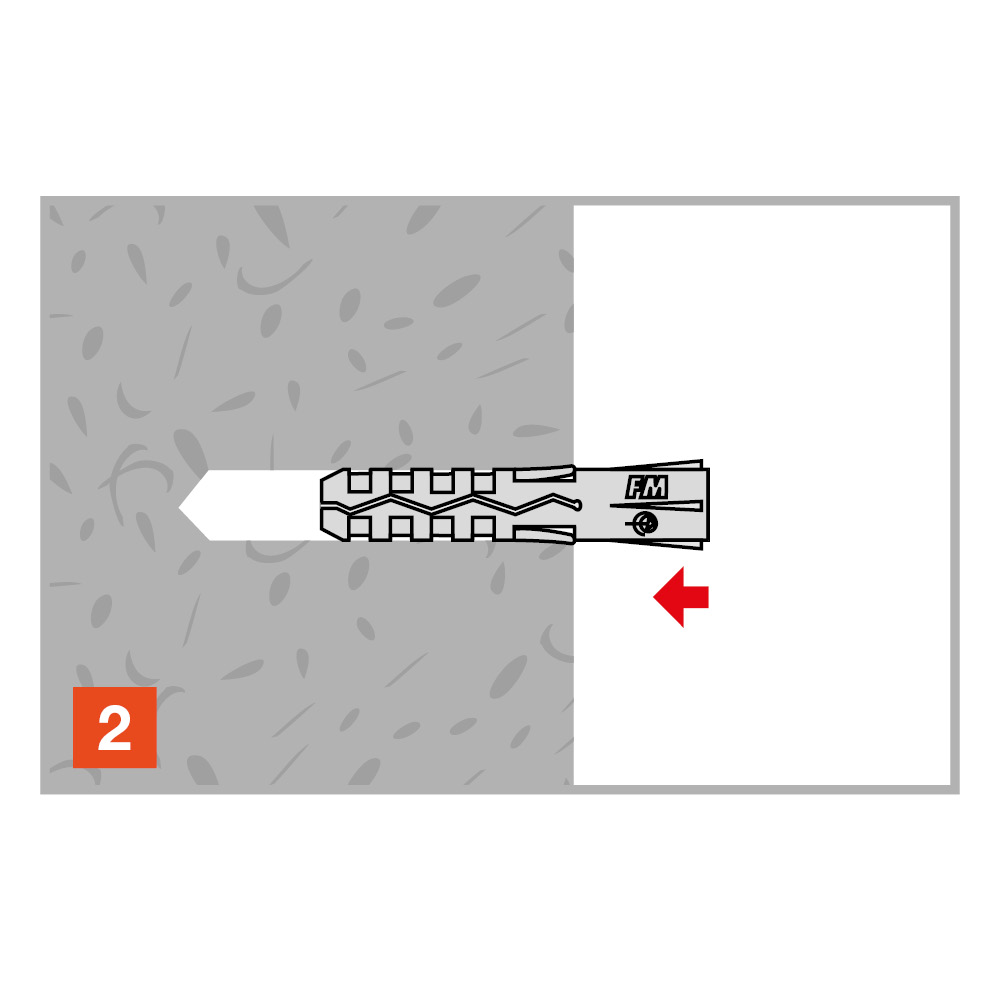

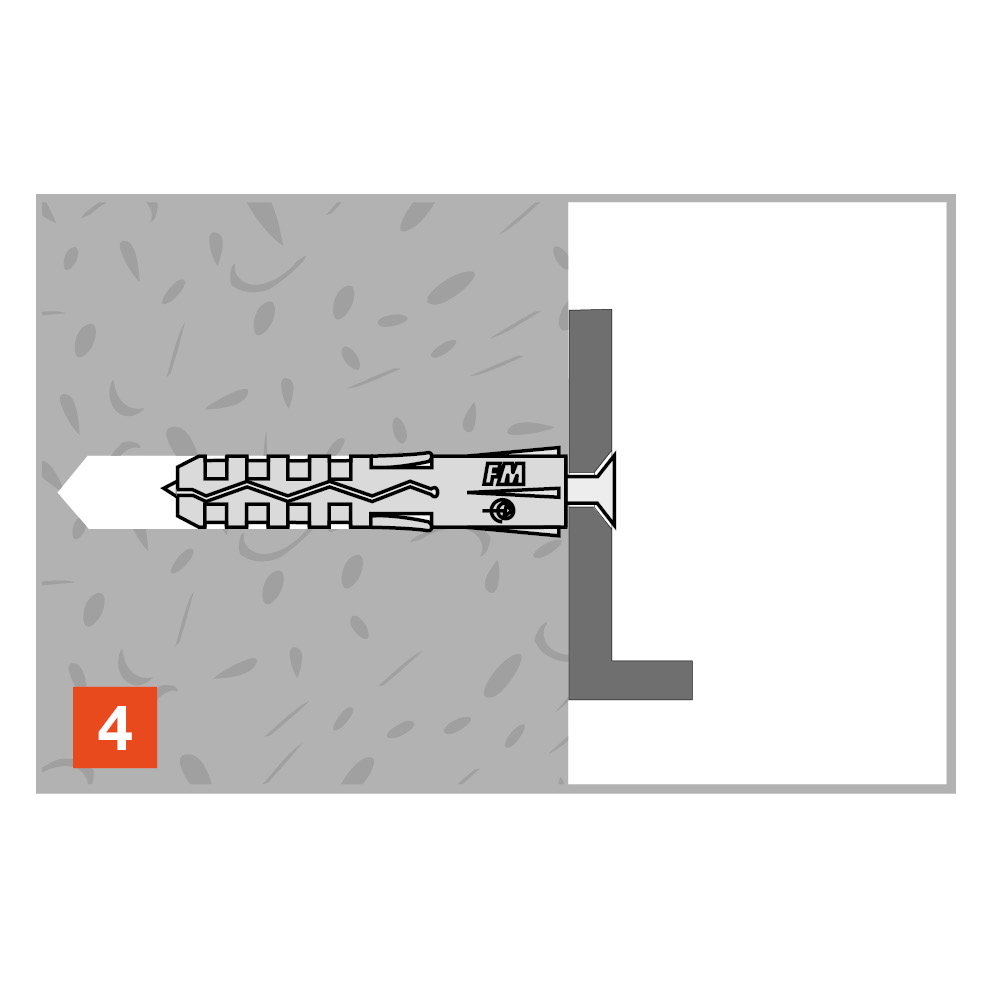

Installatie
Installatie
