TUP4

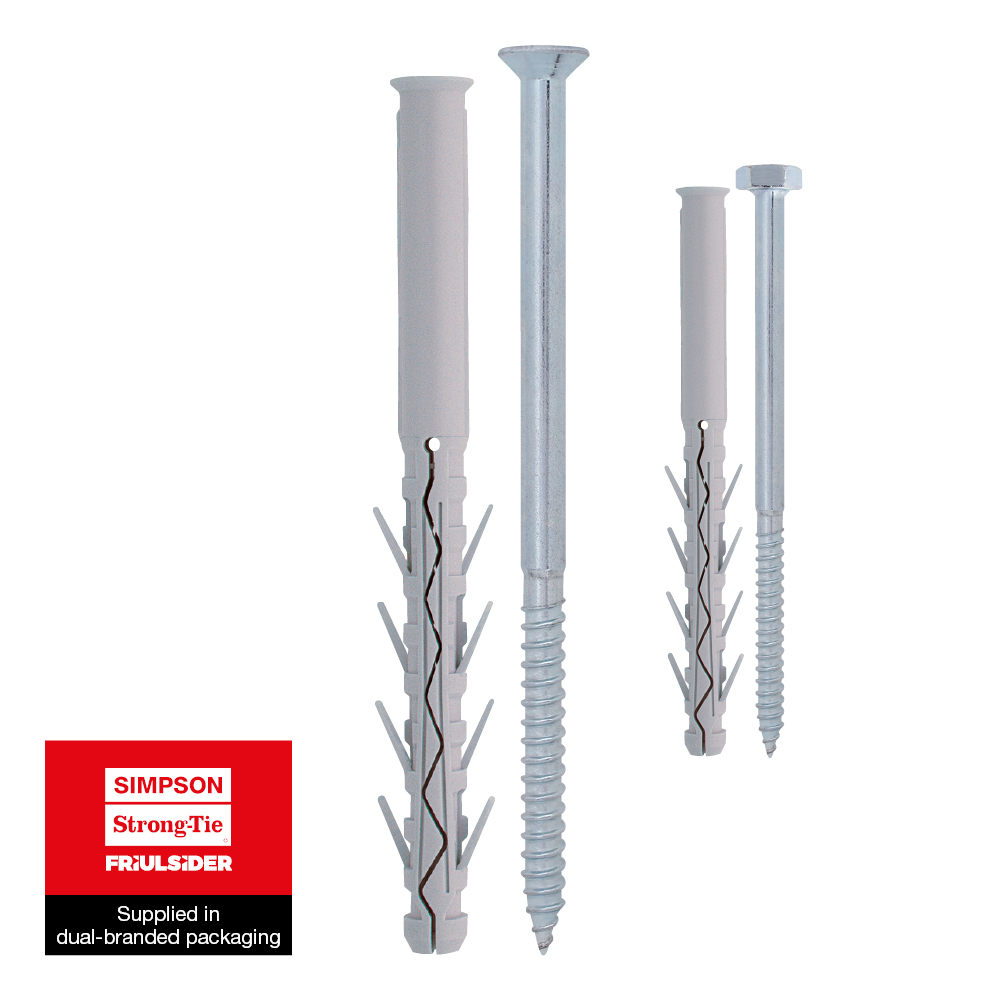

Lange nylonplug met hoge uitzetting
De lange nylonplug TUP is geschikt voor het bevestigen van dunne of dikke elementen op elk type holle of volle ondergrond.
Gebruiksklasse 2
Elektrolytisch verzinkt staal
Binner
Product Details
Afbeeldingen
Kenmerken

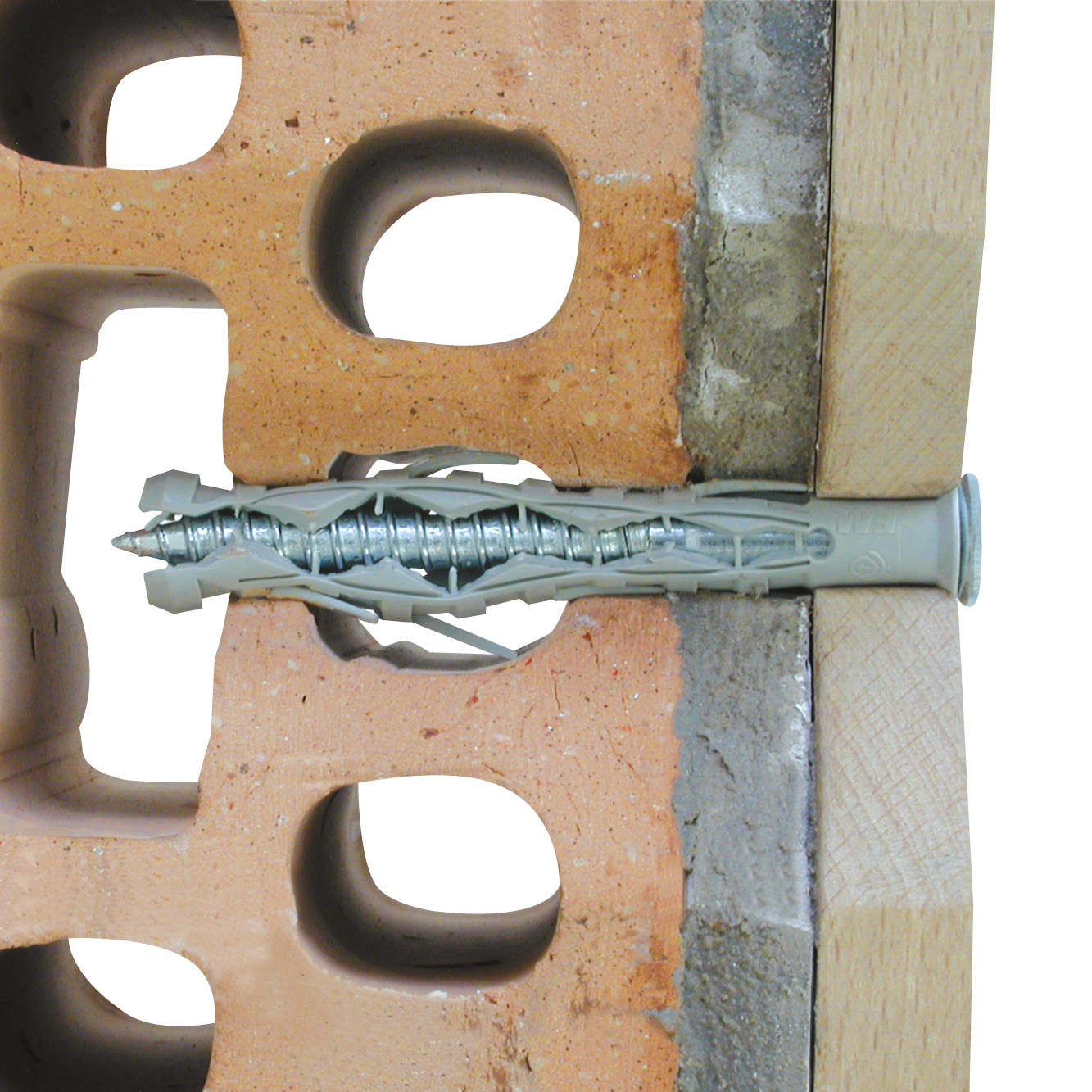

Toepassing
Technische gegevens
Afmetingen
Afmetingen
| Referentie | Product Reference | Hole diameter x anchor length [doxL] [mm] | Fixture thickness [tfix] [mm] | Min. hole depth [h1] [mm] | Nominal embedment depth [hnom] [mm] | Min. support thickness [hmin] [mm] | Hole diameter in fixture [df] [mm] | Screw diameter [d] [mm] | Screw length [Lv] [mm] | Recess | Qty per box | Qty per outer box [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 64103B0808000 | TUP4 | Ø8x80 | 10 | 80 | 70 | 125 | 8 | 5.5 | 85 | T30 | 100 | 1000 |
| 64103B0810000 | Ø8x100 | 30 | 80 | 70 | 125 | 8 | 5.5 | 105 | T30 | 50 | 500 | |
| 64103B0812000 | Ø8x120 | 50 | 80 | 70 | 125 | 8 | 5.5 | 125 | T30 | 50 | 500 | |
| 64103B1008500 | Ø10x85 | 15 | 80 | 70 | 125 | 10 | 7 | 90 | T40 | 100 | 500 | |
| 64103B1010000 | Ø10x100 | 30 | 80 | 70 | 125 | 10 | 7 | 105 | T40 | 50 | 500 | |
| 64103B1011500 | Ø10x115 | 45 | 80 | 70 | 125 | 10 | 7 | 120 | T40 | 50 | 500 | |
| 64103B1013500 | Ø10x135 | 65 | 80 | 70 | 125 | 10 | 7 | 140 | T40 | 50 | 250 | |
| 64103B1016000 | Ø10x160 | 90 | 80 | 70 | 125 | 10 | 7 | 165 | T40 | 50 | 250 | |
| 64103B1020000 | Ø10x200 | 130 | 80 | 70 | 125 | 10 | 7 | 205 | T40 | 50 | 250 |

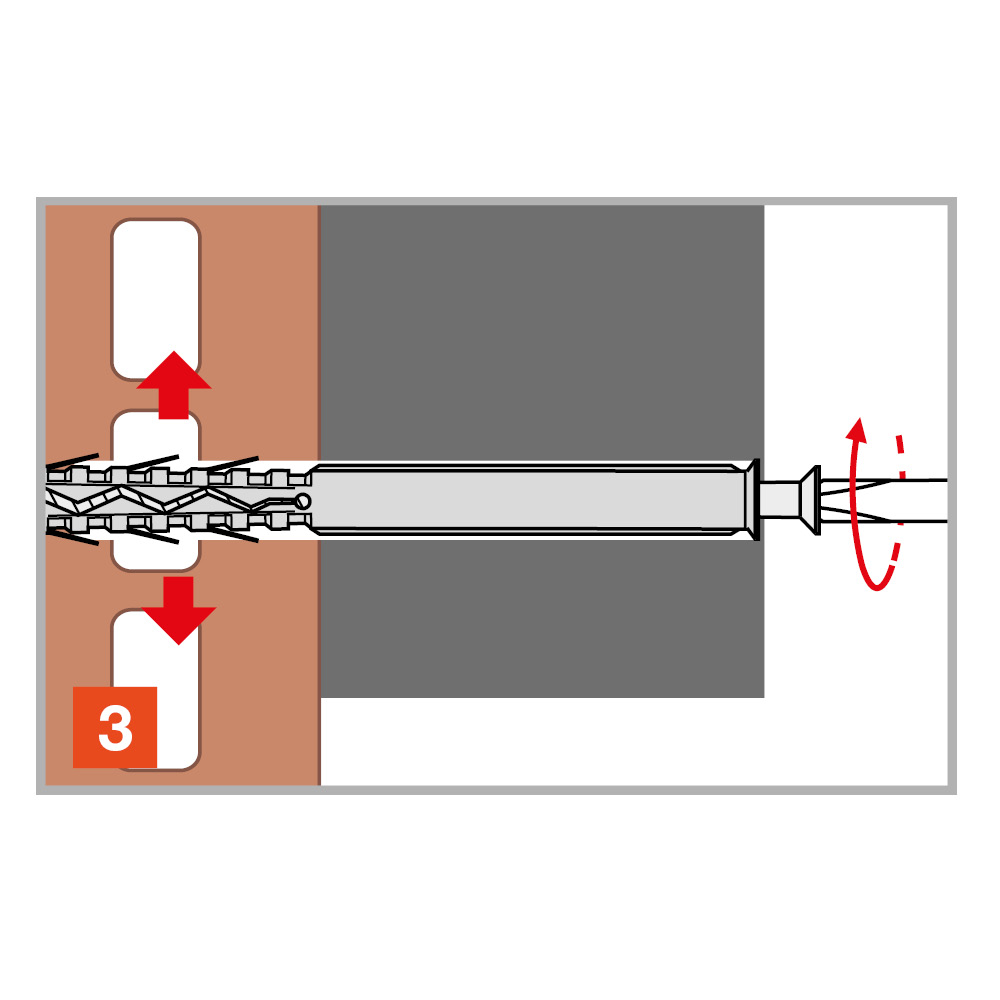

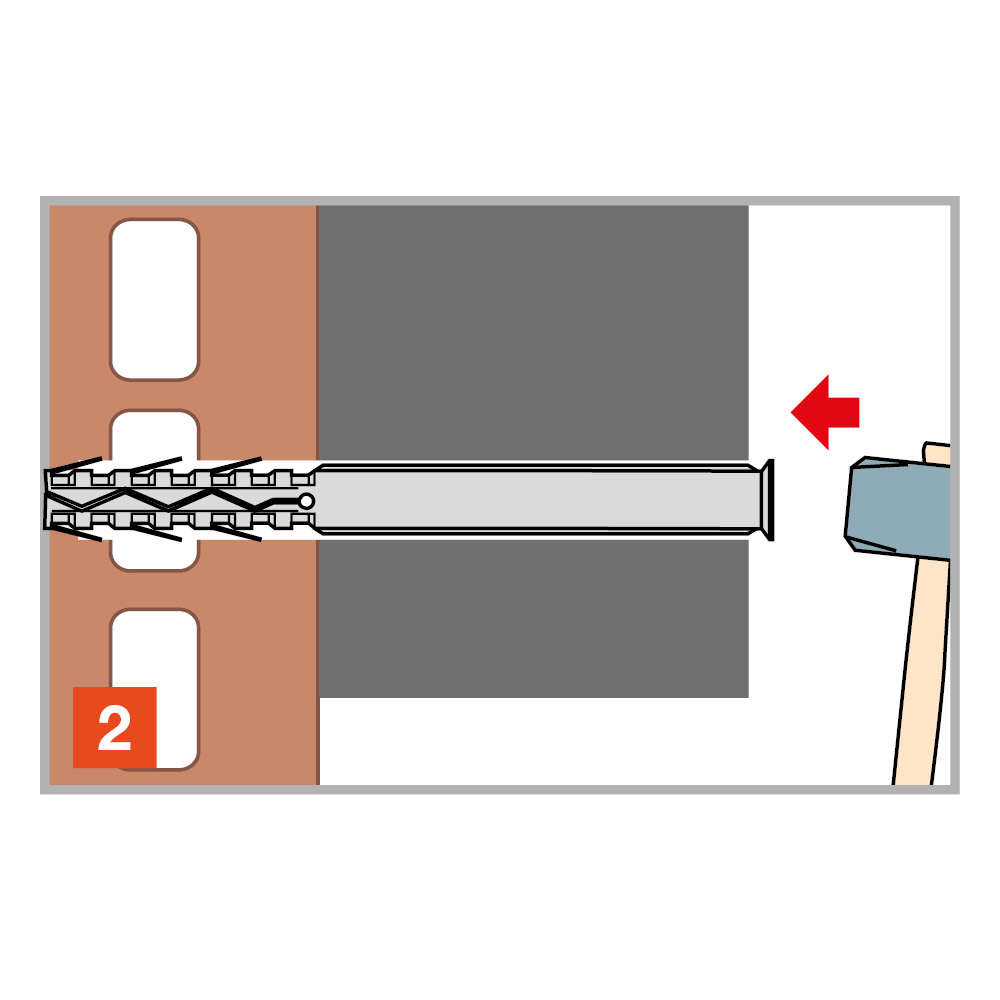

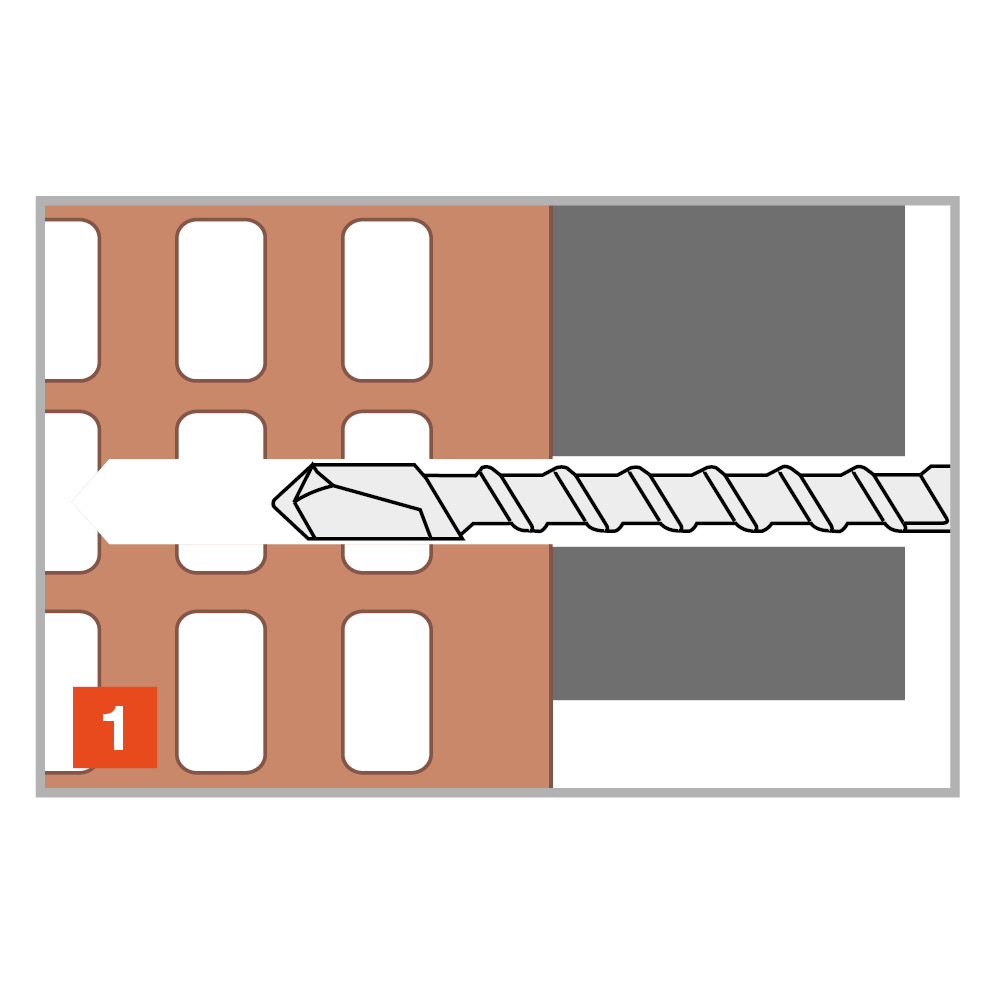

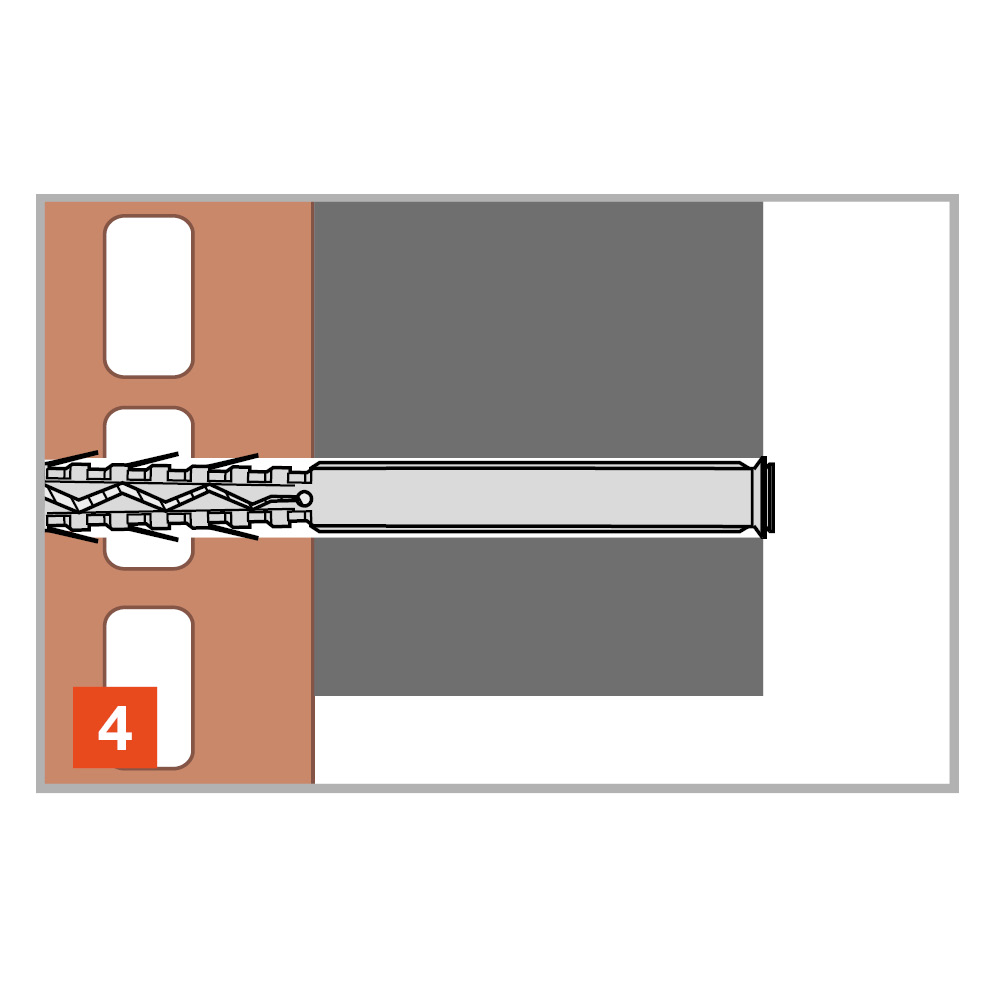

Installatie
