FM-X5 A4

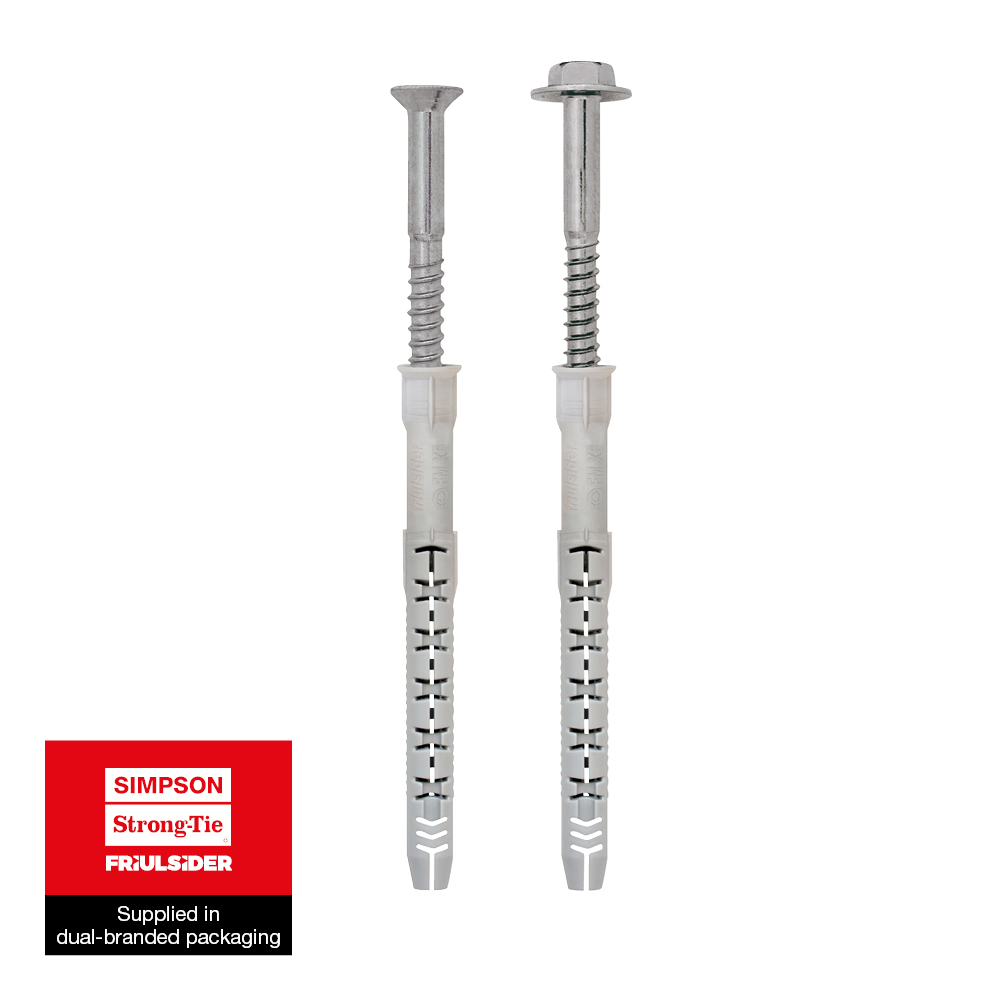

Lange, flexibele nylonplug - Rvs A4

De lange nylonplug FM-X5 is ideaal voor het bevestigen van elementen op elk type holle of volle ondergrond die tijdens de installatie handmatig moet worden afgesteld, zoals venster- of deurramen of -omlijstingen.

De plug wordt voorgemonteerd geleverd met een schroef met verzonken kop van A4 roestvrij staal voor buitengebruik.

Technisch gegevensblad

CE-Markering

ETA

Gebruiksklasse 3

Roestvrij staal A4

Veeleisend

Fix Calc

Product Details

Afbeeldingen

Kenmerken

Materiaal

Plug : nylon,
Schroef : Roestvrij staal A4.

Voordelen

Tijdwinst:

Voorgemonteerde plug en schroef
Montage door het te bevestigen element
8 vleugels die rotatie in het boorgat voorkomen
Flexibel nylon en laag aandraaimoment, waardoor handmatige afstelling mogelijk is
Plug van polyamide PA6 garandeert een zeer goede duurzaamheid

Toepassing

Toepassingsgebieden

Bevestiging van kepers of steunlatten
Bevestiging van enkele hoekijzers
Bevestiging van ramen en deuren
Bevestiging van rails en klemmen voor kabels en leidingen,
Bevestiging van dunne bekledingen op gevels.

Ondergrond

Ongescheurd beton,
Cellenbeton,
Hol en vol metselwerk,
Natuursteen.

Technische gegevens

Product Dimension - Countersunk Screw

Referentie	Product Reference	Hole diameter x anchor length [d_oxL] [mm]	Max. Fixture thickness [t_fix] [mm]	Min. hole depth [h₁] [mm]	Nominal embedment depth [h_nom] [mm]	Min. support thickness [h_min] [mm]	Hole diameter in fixture [d_f] [mm]	Screw diameter [d] [mm]	Screw length [L_v] [mm]	Bit	Qty per box	Qty per outer box
6430100808000	FM-X5 A4	Ø8x80	10	80	70	120	8.5	6	85	T30	100	1000
6430100812000	FM-X5 A4	Ø8x120	50	80	70	120	8.5	6	125	T30	50	500

▲ Quantity and delivery terms to be agreed

Afmetingen

Table "Afmetingen" cannot be displayed : no references available.

Design capacities - single anchor - no edge distances

Referentie	Design capacities - single anchor - no edge distances
	Design capacity
	Tension - N_Rd				Shear - V_Rd				Bending moment MRd [Nm]
	Non-cracked concrete C12/15 [kN]	Non-cracked concrete C16/20 [kN]	Autoclaved aerated concrete AAC [kN]	Solid brick [kN]	Non-cracked concrete C12/15 [kN]	Non-cracked concrete C16/20 [kN]	Autoclaved aerated concrete AAC [kN]	Solid brick [kN]	Bending moment MRd [Nm]
6430100808000	0.8	1.4	0.3	1.4	0.8	1.4	0.3	1.4	7.7
6430100812000	0.8	1.4	0.3	1.4	0.8	1.4	0.3	1.4	7.7

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

*Not covered by ETA-11/0080

Installatie

Installation data

Referentie	Product Reference	Hole diameter x anchor length [d_oxL] [mm]	Ø drilling hole [d0] [mm]	Min. drill depth [h1] [mm]	Ø drilling fixture [df] [mm]	Wrench size [SW] [mm]
6430100808000	FM-X5 A4	Ø8x80	8	80	8.5	-
6430100812000	FM-X5 A4	Ø8x120	8	80	8.5	-

Spacings and edge distances

Referentie	Product Reference	Hole diameter x anchor length [d_oxL] [mm]	Spacings and edge distances
			Non-cracked concrete C12/15				Non-cracked concrete C16/20				Autoclaved aerated concrete AAC			Solid brick
			Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]	Characteristic edge distance [ccr,N] [mm]	Minimun thickness of support [hmin] [mm]	Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]	Characteristic edge distance [ccr,N] [mm]	Minimun thickness of support [hmin] [mm]	Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]	Minimun thickness of support [hmin] [mm]	Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]	Minimun thickness of support [hmin] [mm]
6430100808000	FM-X5 A4	Ø8x80	80	80	140	100	60	60	100	100	100	250	200	100	250	110
6430100812000	FM-X5 A4	Ø8x120	80	80	140	100	60	60	100	100	100	250	200	100	250	110
