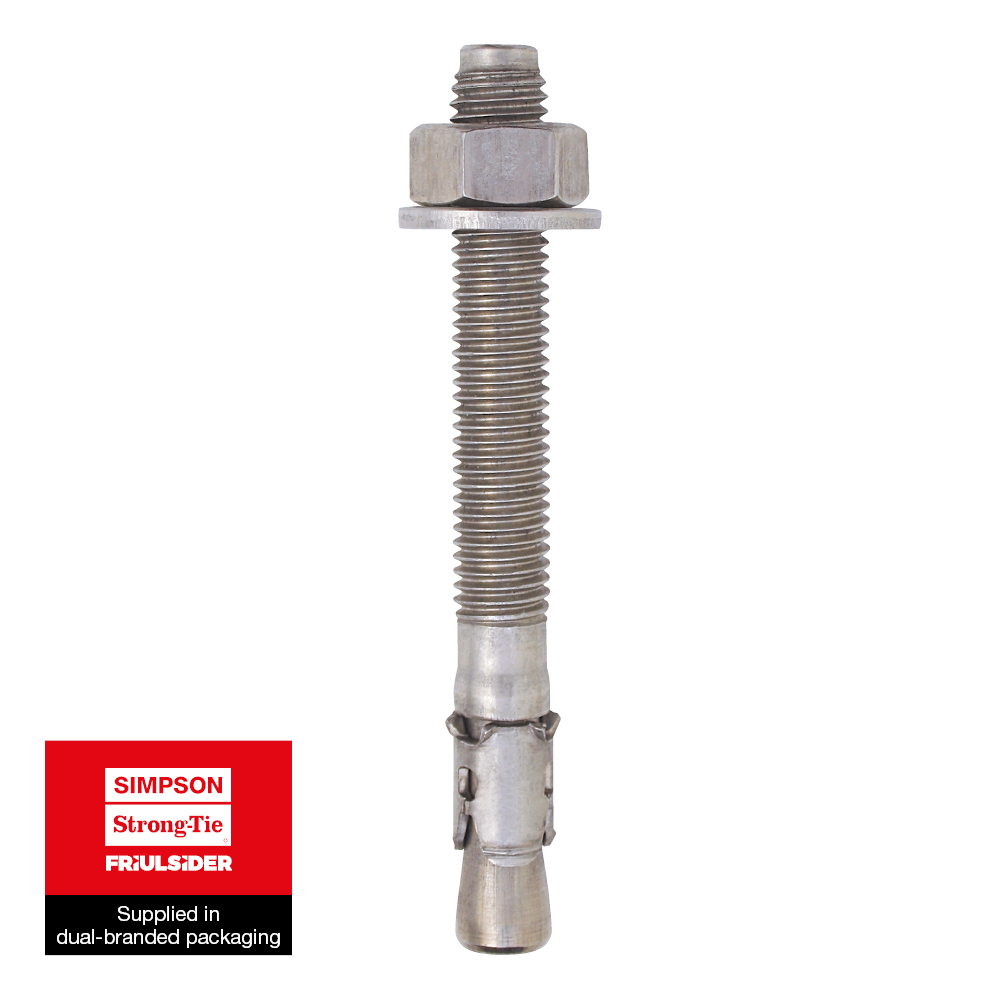

FM-753 A4

Doorsteekanker optie 7 - Rvs A4

Het doorsteekanker FM-753 A4 met een diameter van M8 tot M16 is een doeltreffende oplossing voor het bevestigen van elementen op ondergronden van ongescheurd beton of steen in buitentoepassingen.

Technisch gegevensblad

CE-Markering

ETA

Gebruiksklasse 3

Roestvrij staal A4

Veeleisend

Fix Calc

Product Details

Afbeeldingen

Kenmerken

Materiaal

Roestvrij staal A4.

Voordelen

Tijdwinst:

Onmiddellijke uitzetting,
Montage door het te bevestigen element, Ø van het boorgat = Ø van de plug,
Voorgemonteerde moer en sluitring,
Breed assortiment.

Prestaties:

Zes tanden en antislipranden voor een betere grip op de boorgatwanden,
Grote dikte van de drie uitzettende segmenten.

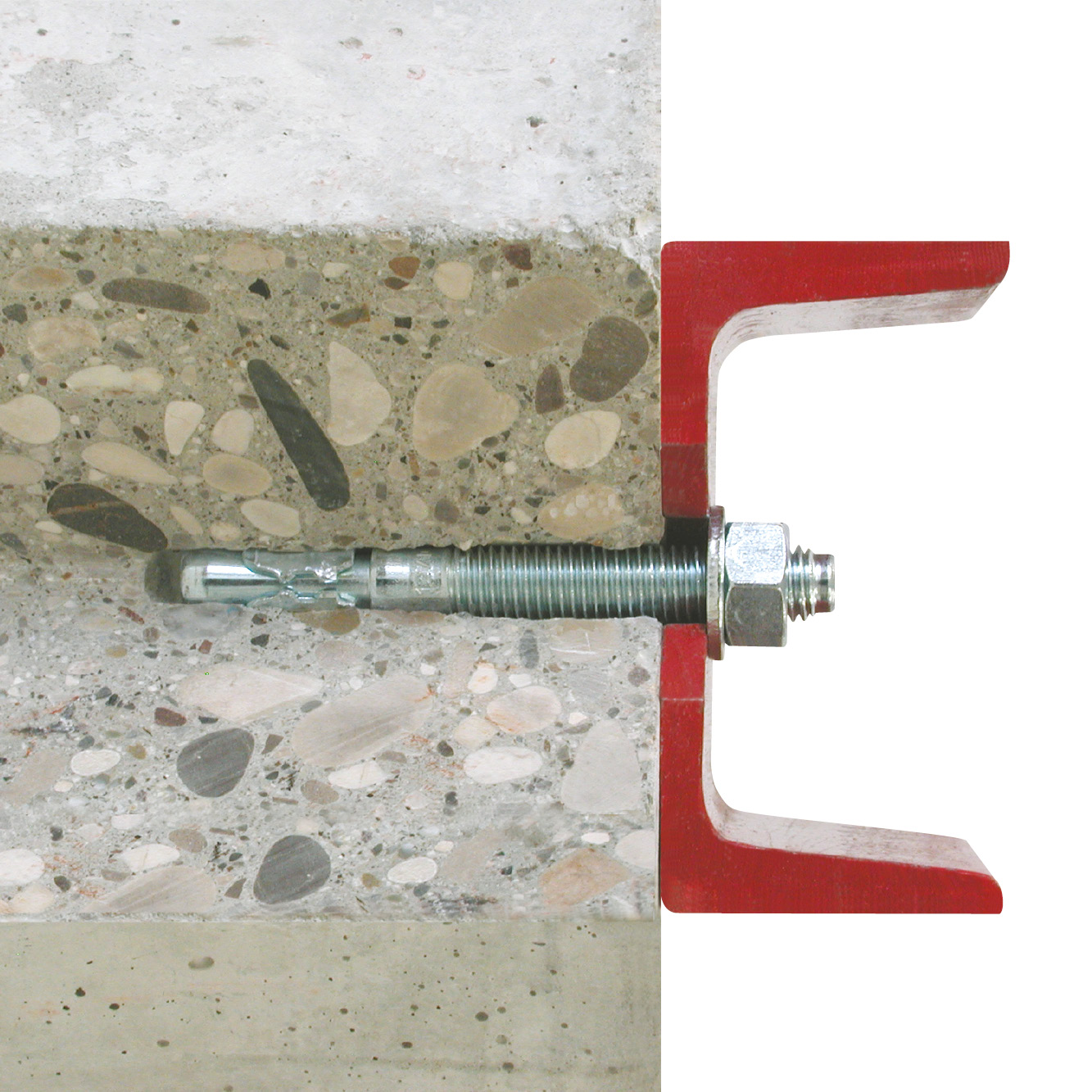

Toepassing

Toepassingsgebieden

Structurele bevestigingen,
Gevel,
Borstweringen,
Ophangbeugels voor kapconstructies.

Ondergrond

Ongescheurd beton,
Natuursteen

Technische gegevens

Afmetingen

Product Dimensions

Referentie	Product Reference	Dimensions [ØxL] [mm]	Thread length	Fixture thickness [t_fix,max] with standard setting depth [h_ef,STD] [mm]	Fixture thickness [t_fix,max] with reduced setting depth [h_ef,RED] [mm]	Hole diameter in fixture [d_f] [mm]	Hole diameter [d_o] x depth [h₁] in substrate [mm]	Min. setting depth [h_ef] [mm]	Qty per box
7532000806500	FM-753 A4	M8x65	38	7	15	9	8x60	40	100
7532000807500	FM-753 A4	M8x75	48	15	25	9	8x60	40	100
7532000809000	FM-753 A4	M8x90	63	30	40	9	8x60	40	100
7532001007500	FM-753 A4	M10x75	43	5	20	12	10x70	50	50
7532001009000	FM-753 A4	M10x90	55	20	35	12	10x70	50	50
7532001012000	FM-753 A4	M10x120	85	50	65	12	10x70	50	50
7532001210000	FM-753 A4	M12x100	58	10	25	14	12x85	60	50
7532001211000	FM-753 A4	M12x110	68	20	35	14	12x85	60	50
7532001213500	FM-753 A4	M12x135	93	45	60	14	12x85	60	25
7532001617500	FM-753 A4	M16x175	88	60	80	18	16x115	85	20

* Anchors with reduced embedment depths

** Not covered by CE certification

Design capacities - single anchor - no edge distances

Referentie	Product Reference	Dimensions [ØxL] [mm]	Design capacities - single anchor - no edge distances
			Design capacity - Non-cracked concrete (3)
			Tension - NRd (1)				Shear - VRd (1-2)				Bending moment MRd [Nm]
			C20/25 [kN]	C30/37 [kN]	C40/50 [kN]	C50/60 [kN]	C20/25 [kN]	C30/37 [kN]	C40/50 [kN]	C50/60 [kN]	Bending moment MRd [Nm]
7532000806500	FM-753 A4	M8x65	5	5.85	6.6	7.1	8.3	-	-	-	18.04
7532000807500	FM-753 A4	M8x75	5	5.85	6.6	7.1	8.3	-	-	-	18.04
7532000809000	FM-753 A4	M8x90	5	5.85	6.6	7.1	8.3	-	-	-	18.04
7532001007500	FM-753 A4	M10x75	8	9.76	11.28	12.4	11.6	-	-	-	36.84
7532001009000	FM-753 A4	M10x90	8	9.76	11.28	12.4	11.6	-	-	-	36.84
7532001012000	FM-753 A4	M10x120	8	9.76	11.28	12.4	11.6	-	-	-	36.84
7532001210000	FM-753 A4	M12x100	15.2	18.544	21.432	23.56	20.6	20.6	20.6	20.6	63.9
7532001211000	FM-753 A4	M12x110	15.2	18.544	21.432	23.56	20.6	20.6	20.6	20.6	63.9
7532001213500	FM-753 A4	M12x135	15.2	18.544	21.432	23.56	20.6	20.6	20.6	20.6	63.9
7532001617500	FM-753 A4	M16x175	23.3	28.426	32.853	36.115	38.4	38.4	38.4	38.4	162.4

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

*) Short series with reduced embedment depth

**) Not covered by CE certification

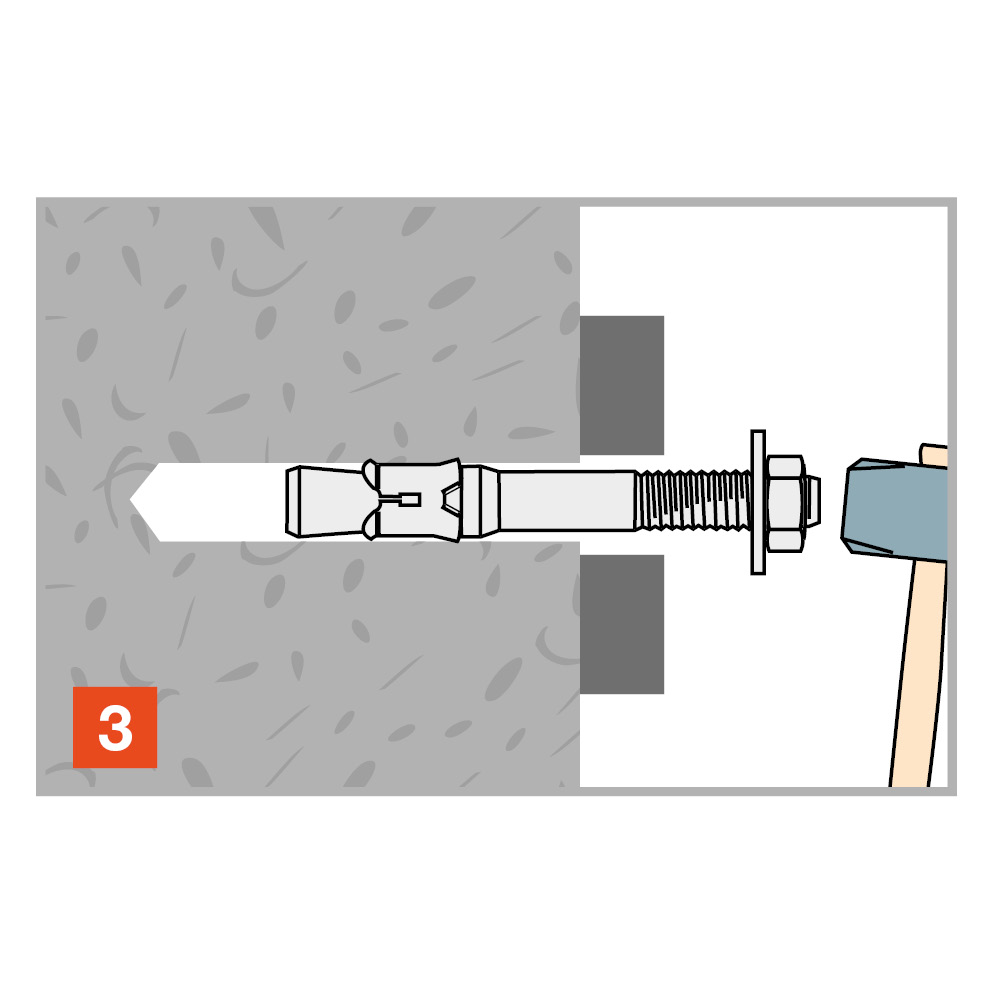

Installatie

Installation data

Referentie	Product Reference	Dimensions [ØxL] [mm]	Ø drilling hole [d0] [mm]	Min. drill depth [h1] [mm]	Ø drilling fixture [df] [mm]	Wrench size [SW] [mm]	Installation torque [Tinst] [Nm]	Embedment depth [hef] [mm]	Min. support thickness [hmin] [mm]
7532000806500	FM-753 A4	M8x65	8	60	9	13	15	40	100
7532000807500	FM-753 A4	M8x75	8	60	9	13	15	40	100
7532000809000	FM-753 A4	M8x90	8	60	9	13	15	40	100
7532001007500	FM-753 A4	M10x75	10	70	12	17	25	50	100
7532001009000	FM-753 A4	M10x90	10	70	12	17	25	50	100
7532001012000	FM-753 A4	M10x120	10	70	12	17	25	50	100
7532001210000	FM-753 A4	M12x100	12	85	14	19	50	60	120
7532001211000	FM-753 A4	M12x110	12	85	14	19	50	60	120
7532001213500	FM-753 A4	M12x135	12	85	14	19	50	60	120
7532001617500	FM-753 A4	M16x175	16	115	18	24	100	85	170

* Not included in the approval

Spacings and Edge distances

Referentie	Product Reference	Dimensions [ØxL] [mm]	Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]	Characteristic edge distance [ccr,N] [mm]	Characteristic spacing(5) - Scr,N [scr,N] [mm]
7532000806500	FM-753 A4	M8x65	60	60	60	120
7532000807500	FM-753 A4	M8x75	60	60	60	120
7532000809000	FM-753 A4	M8x90	60	60	60	120
7532001007500	FM-753 A4	M10x75	75	75	75	150
7532001009000	FM-753 A4	M10x90	75	75	75	150
7532001012000	FM-753 A4	M10x120	75	75	75	150
7532001210000	FM-753 A4	M12x100	90	90	90	180
7532001211000	FM-753 A4	M12x110	90	90	90	180
7532001213500	FM-753 A4	M12x135	90	90	90	180
7532001617500	FM-753 A4	M16x175	130	130	130	260
