THAI

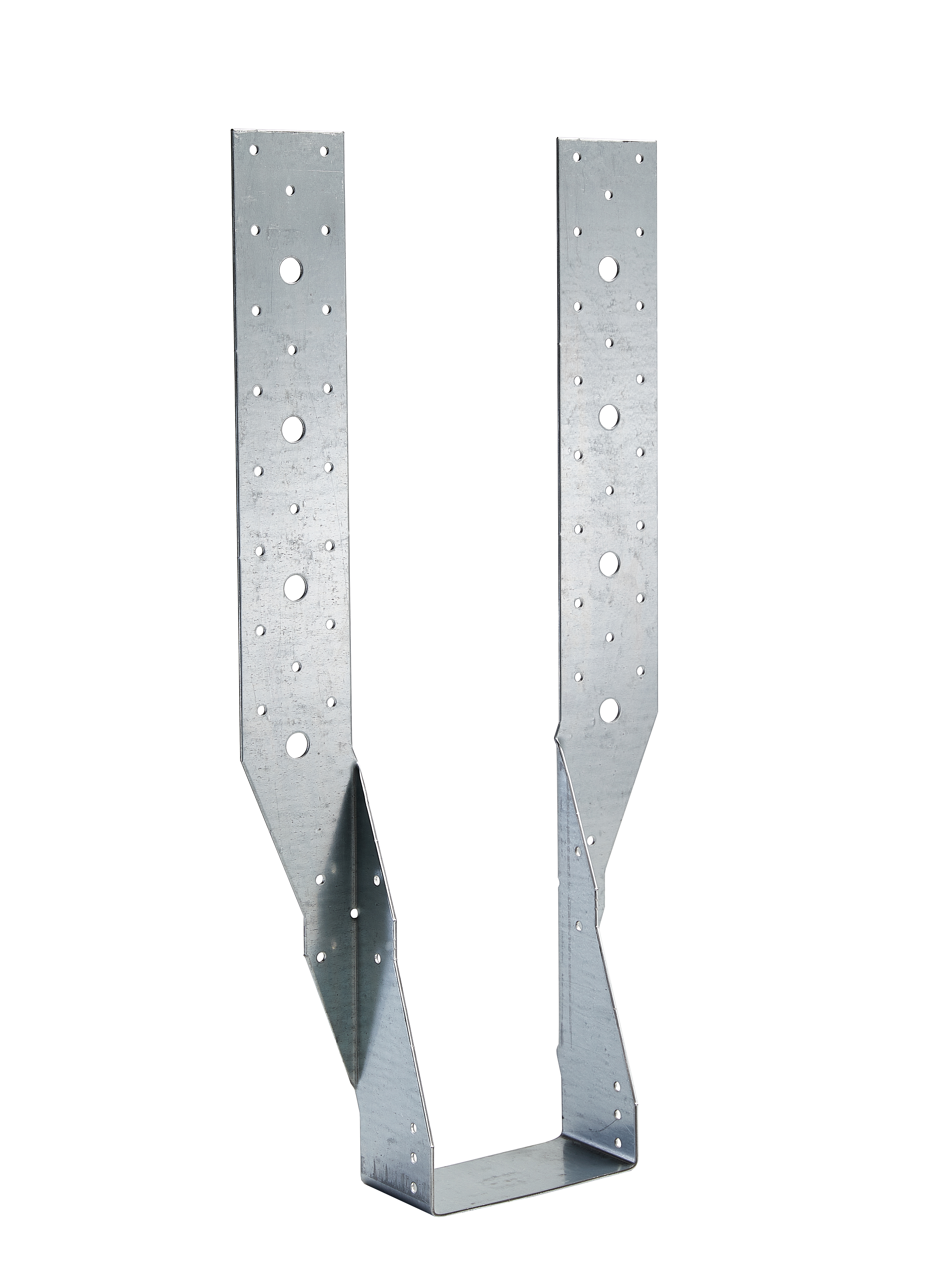

Bretelbeugel
Bretelbeugels type THAI zijn in hoogte verstelbaar door de bretellen om te plooien op de drager afhankelijk van de gewenste plaatsingswijze.
CE-Markering
ETA
Gebruiksklasse 2
Binner
Gegalvaniseerd staal Z275
Product Details
Afbeeldingen
Kenmerken
Toepassing
Technische gegevens
Afmetingen
Afmetingen en karakteristieke waarden
| Referentie | Afmetingen en karakteristieke waarden [mm] | Drager Boorgaten | Gedragen boorgaten | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | t | Ø5 | Ø13 | Ø5 | |
| THAI1200/2X | 38 - 150 | (572 -A)/2 | 64 | 64 | (1200-A)/2 | 67 | 2 | 48 | 8 | 10 |

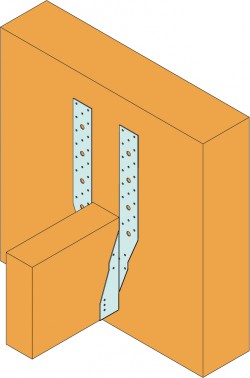

Karakteristieke waarden - Hout op hout - Platte flenzen
| Referentie | Karakteristieke waarden - Hout op hout - Platte flenzen | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bevestigingen | Karakteristieke waarden Ri,k [kN] | |||||||||||
| Drager | Spanwijdte | R1,k | R2,k | |||||||||
| Aantal | Typ | Aantal | Typ | C18 | C24 | SCL | C24 | |||||
| CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | |||||
| THAI1200/40/2 | 20 | * | 2 | CNA4.0x35 | 10.6 | - | 12 | - | 20.6 | - | 1.7 | - |
| THAI1200/80/2 | 20 | * | 2 | CNA4.0x50 | - | 18.4 | - | 20.1 | - | 32.5 | - | 3.1 |
| THAI1200/90/2 | 20 | * | 2 | CNA4.0x50 | - | 20 | - | 22.7 | - | 32.5 | - | 3.1 |
| THAI1200/120/2 | 20 | * | 2 | CNA4.0x50 | - | 23.5 | - | 26.4 | - | 32.5 | - | 3.1 |
| THAI1200/140/2 | 20 | * | 2 | CNA4.0x50 | - | 24.3 | - | 26.4 | - | 32.5 | - | 3.1 |
| THAI1200/150/2 | 20 | * | 2 | CNA4.0x50 | - | 24.3 | - | 26.4 | - | 32.5 | - | 3.1 |
* Refer to capacity table columns for type of fasteners that can be used on header. Capacities vary depending on fastener type used.

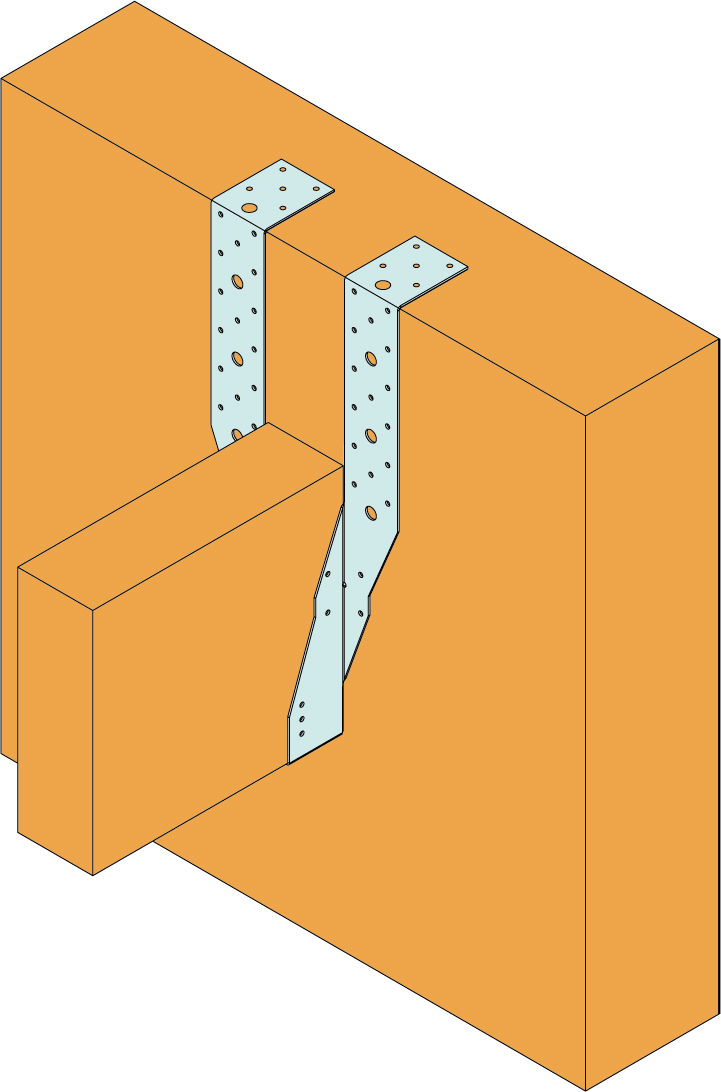

Karakteristieke waarden - Hout op hout - Geplooide flenzen
| Referentie | Karakteristieke waarden - Hout op hout - Geplooide flenzen | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bevestigingen | Karakteristieke waarden Ri,k [kN] | |||||||||||||
| Spanwijdte | Drager | R1,k | R2,k | |||||||||||
| Aantal | Typ | Bovenkant | Zijkant | C18 | C24 | SCL | C24 | |||||||
| Aantal | Typ | Aantal | Typ | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | |||
| THAI1200/40/2 | 2 | CNA4.0x35 | 4 | * | 2 | * | 10.6 | - | 12.1 | - | 18.8 | - | 1.7 | - |
| THAI1200/80/2 | 2 | CNA4.0x50 | 4 | * | 2 | *. | - | 16.7 | - | 18 | - | 22.2 | - | 3.1 |
| THAI1200/90/2 | 2 | CNA4.0x50 | 4 | * | 2 | * | - | 16.7 | - | 18 | - | 22.2 | - | 3.1 |
| THAI1200/120/2 | 2 | CNA4.0x50 | 4 | * | 2 | * | - | 16.7 | - | 18 | - | 22.2 | - | 3.1 |
| THAI1200/140/2 | 2 | CNA4.0x50 | 4 | * | 2 | * | - | 16.7 | - | 18 | - | 22.2 | - | 3.1 |
| THAI1200/150/2 | 2 | CNA4.0x50 | 4 | * | 2 | * | - | 16.7 | - | 18 | - | 22.2 | - | 3.1 |
* Refer to capacity table columns for type of fasteners that can be used on header. Capacities vary depending on fastener type used.

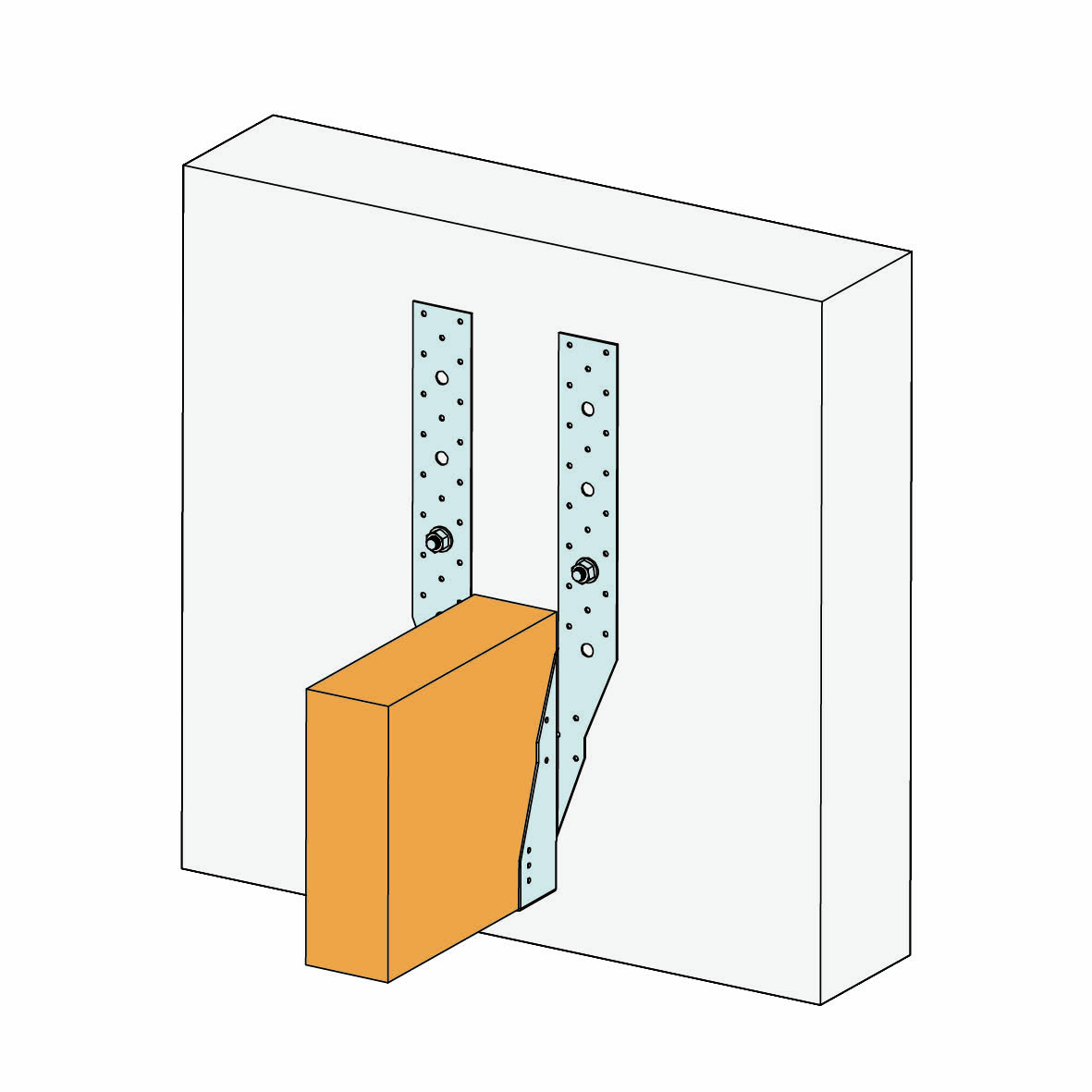

Product capacities - Timber to concrete - Face fix Installation
| Referentie | Product capacities - Timber to Concrete | |||||||
|---|---|---|---|---|---|---|---|---|
| Fasteners | Characteristic capacities - Timber C24 [kN] | |||||||
| On joist | On concrete | R1.k | R2.k | |||||
| Qty | Type | Qty | Type | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | |
| THAI1200/40/2 | 2 | CNA | 2 | Ø12 | 12 | - | 1.7 | - |
| THAI1200/80/2 | 2 | CNA | 2 | Ø12 | - | 21 | - | 3.1 |
| THAI1200/90/2 | 2 | CNA | 2 | Ø12 | - | 22.7 | - | 3.1 |
| THAI1200/120/2 | 2 | CNA | 2 | Ø12 | - | 26.7 | - | 3.1 |
| THAI1200/140/2 | 2 | CNA | 2 | Ø12 | - | 28.4 | - | 3.1 |
| THAI1200/150/2 | 2 | CNA | 2 | Ø12 | - | 28.9 | - | 3.1 |
* Refer to capacity table columns for type of fasteners that can be used on header. Capacities vary depending on fastener type used.
The user shall check the capacity of the group of two anchor submitted to lateral load =F1 and axial load =F1*0.17.
